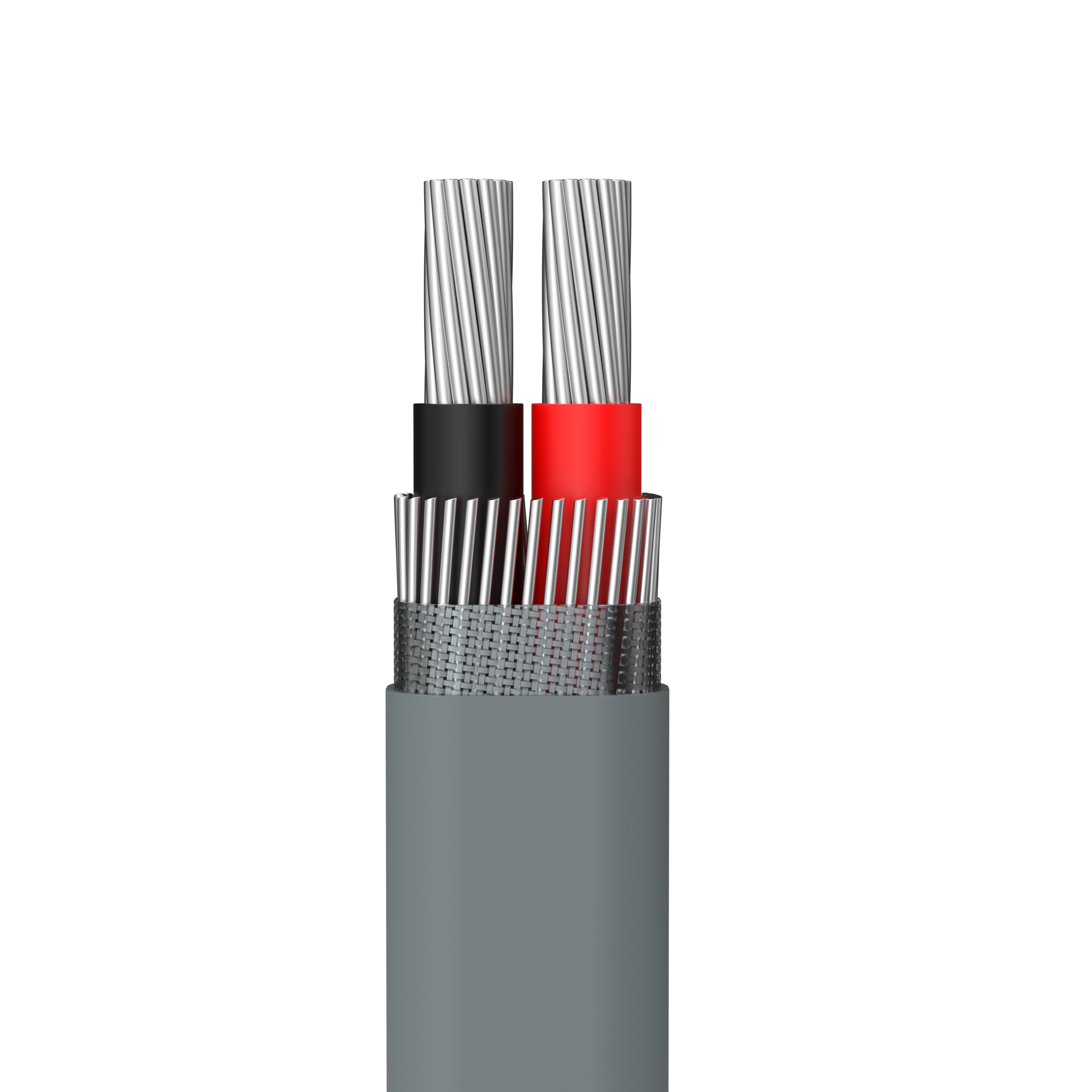

600 V Aluminum USE-2 RHH or RHW-2

Home Products ALUMINUM BUILDING WIRE 600 V Aluminum USE-2 RHH or RHW-2

UL Type USE-2 / RHH / RHW-2, 8000 Series Aluminum Conductor, 90°C Dry or Wet, Rated 600 V

BMB Test 2

2.2

ALUMINUM BUILDING WIRE

TYPE MC ALUMINUM ARMORED CABLES

MEDIUM VOLTAGE CABLES

CWC SHORT NAME 7

CWC SHORT NAME 9

CWC SHORT NAME 10

CWC SHORT NAME 11

CWC SHORT NAME 123

UTILITY ALUMINUM CABLES

Bare Aluminum Cables

Service Drop Cables (Overhead)

Aluminum Service Drop Cables - Duplex

Aluminum Service Drop Cables - Triplex

Aluminum Service Drop Cables - Quadruplex

Aluminum URD Cables (Underground)

Category for CWC

Select a section

UL Type USE-2 / RHH / RHW-2 conductors are used in conduit and direct burial (as UL Type USE-2) for services, feeders, and branch circuits in residential, commercial or industrial applications in accordance with the NEC. When used as UL Type USE-2 or RHW-2, the conductor is suitable for use in dry or wet locations at temperatures not to exceed 90°C. When used as UL Type RHH, the conductor is suitable for use in dry locations at temperatures not to exceed 90°C. The conductor is rated 600 V.

Conductors:
Annealed compact stranded AA-8000 series Aluminum Conductor Material (ACM).
Insulation:
Abrasion, moisture, heat, and sunlight resistant colored crosslinked polyethylene (XLPE).

Temperature Rating
90°C	Dry or Wet

Standards
ASTM B800 -- 8000 Series Aluminum Alloy Wire for Electrical Purposes—Annealed and Intermediate Tempers
ASTM B801 -- Concentric-Lay-Stranded Conductors of 8000 Series Aluminum Alloy for Subsequent Covering or Insulation
UL 44 -- Thermoset-Insulated Wires and Cables (RHH / RHW-2)
UL 854 -- Service-Entrance Cables (USE-2)
ICEA S-95-658 / NEMA WC70 -- Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
Federal Specification AA-59544
Federal Specification JC-30B
