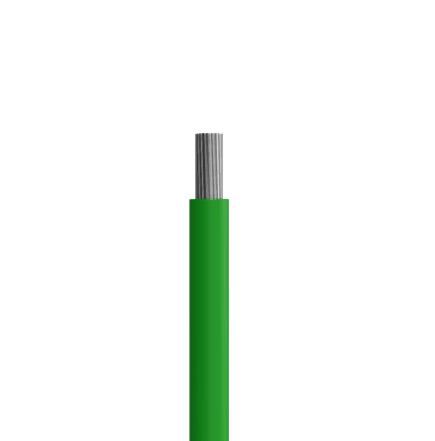

CWC LowFriction (R) UL Type THHN / THWN-2, Aluminum Conductor, 90°C Dry or Wet, 75°C in Oil, Rated 600 V v6

a Hieu 1 3633636 lan 39

a Hieu 2

a Hieu 4

a Hieu 5

a Hieu 7

Duplicate category 3 (1)

a Hieu 1.1

a Hieu 2.1

a Hieu 4.1

a Hieu 5.1

a Hieu 6.1

a Hieu 8.1

Test 1

Test 1.1

Test 1.1.1

Hanh Test Product CWC 2 (2)

TYPE MC

SHORT A 1

SHORT A 2

SHORT A 3

SHORT A 4

SHORT A 5

ALUMINUM BUILDING WIRE111

SHORT B 1

SHORT B 2

SHORT B 3

SHORT B 4

SHORT B 5

SHORT C 1

SHORT C 2

SHORT C 3

SHORT C 4

SHORT C 5

C4 444 (1)

SHORT NAME lv1

CATEGORY NAME LV2

SHORT NAME lv3

Son test hehe 24/02 (1)

CWC SHORT NAME HIHI

CWC CATEGORY NAME LV2

CWC SHORT NAME HEHE

Son test menu hihi12345 (1)

Hieu Shortname 3.3-1

Hieu Shortname 3.3-2

Hieu Shortname 3.3-4

Hieu Shortname 3.3-5

Hieu Shortname 3.3-6

Hieu Shortname 3.4-1

Hieu Shortname 3.4-2

Hieu Shortname 3.4-4

Hieu Shortname 3.4-5

Hieu Shortname 3.4-6

SHORT TEST 1

SHORT TEST 2

SHORT TEST 3

SHORT TEST 4

SHORT TEST 5

Hieu test doi ten

Bare Aluminum Cables

Cables Overhead

AWG 62289

Drop Cables - Duplex

Drop Cables - Quadruplex

URD Cables (Underground)

MEDIUM VOLTAGE CABLES

SO PORTABLE CORD

Hieu Category

Test Category 7u8

Select a section

CWC LowFriction UL Type THHN / THWN-2 conductors are primarily used in conduit and cable trays for services, feeders, and branch circuits in commercial or industrial applications in accordance with the NEC. When used as UL Type THHN, the conductor is suitable for use in dry locations at temperatures not to exceed 90°C. When used as UL Type THWN-2, the conductor is suitable for use in dry or wet locations at temperatures not to exceed 90°C or 75°C when exposed to oil or coolant. The conductor is rated 600 V. Although this product may be installed without the application of pulling lubricant, a good quality pulling lubricant is recommended.

Colored PVC

600 V

temperature rating
90°C	Dry or Wet
75°C	Exposed to Oil

minimum bending radius
Overall Diameter Less than or Equal to 1.000 in
Not Under Tension	4x outer diameter
Under Tension (During Pull)	6x outer diameter
Overall Diameter Greater than 1.000 in
Not Under Tension	5x outer diameter
Under Tension (During Pull)	7.5x outer diameter

Marked VW-1
Sizes 6 AWG and larger sunlight resistant and marked
Sizes 1/0 AWG and larger marked ''FOR CT USE''
RoHS Compliant

standards
ASTM B800 -- 8000 Series Aluminum Alloy Wire for Electrical Purposes—Annealed and Intermediate Tempers
ASTM B801 -- Concentric-Lay-Stranded Conductors of 8000 Series Aluminum Alloy for Subsequent Covering or Insulation
UL 83 -- Thermoplastic-Insulated Wires and Cables
ICEA S-95-658 / NEMA WC70 -- Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
Federal Specification AA-59544

UL listed as Type THHN / THWN-2 -- File E487847

250 ft reel
500 ft reel
1000 ft reel
Master reel
Coil

Cable Layers.1149.1 THHN
